Products Features
- Large horizontal axis rotary hook and large bobbin.
- 50mm slim machine arm diameter.
- High speed cylinder bed walking foot sewing machine.
- Quick stroke adjustment by dial activated and by knee.
- Edge roller guide and binder are optional.
Products Descriptions & Details
This is one high speed, single needle, cylinder bed, compound feed with walking foot lockstitch sewing machine, which is the best cylinder bed walking foot machine with the large horizontal rotary hook in the global market at present. The powerful and effective feeding system with the bottom feed, needle feed and walking foot guarantees the material smooth feeding when sewing different thickness masteries, the max. presser foot lift up to 20mm and large working space under the arm facilitates the sewing large tubes., also with the good view when operation. The small slime cylinder arm (50mm diameter) equipped with the large horizontal axis hook and large bobbin, small diameter cylinder is good sewing for the sharp curves, as well as the difficulty sewing processes like assembly and binding operations and decorative stitching on small leather goods and or tubular workpieces. Suitable for sewing medium to heavy weight materials, such as leather bags, wallets, holsters and other small size products, especially for the tubular shape products.
Tension Set
External Display Screen

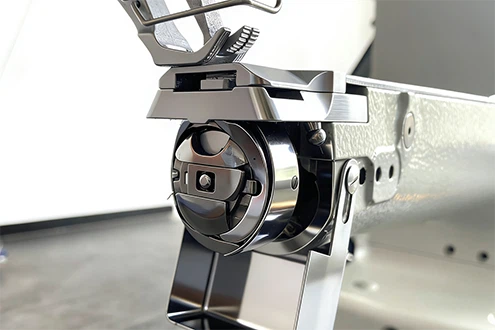

Large Rotary Hook
Products Specifications
|
Model |
GA669-110126 |
GA669-111126 |
|
Number of Needle |
1 needle |
|
|
The Cylinder Diameter |
50mm |
|
|
Max.Sewing Speed |
3000SPM |
|
|
Max.Stitch Length |
9mm |
|
|
Max.Lift of the Presser Foot |
20mm |
|
|
Auto Thread Trimmer |
None |
Yes |
|
Hook |
Large horizontal axis rotary hook(26mm) |
|
|
Lubrication System |
Automatic |
|
|
Needle(standard) |
DPx35 |
|
|
Working Space |
335x125mm |
|
