A container bag sewing machine, also known as a bag making machine, is a machine used to sew all kinds of bags.
It is a particularly efficient machine that can significantly reduce production time and increase output. The container bag sewing machine is highly reliable and can process materials with surplus thickness. It can help companies to realize semi-automatic production, save production costs and improve production efficiency. The bag sewing machine adopts professional machining technology, it can reach a speed of 3000 bags per hour and can define the number of bags on its own, which greatly improves the production efficiency. It can also be adjusted to manual automatic processing, making the operation more flexible and reliable. In addition, the container bag sewing machine can realize different industry-adapted bags to meet more production needs of companies. Just like our best container bag sewing machine GK81800.
Since container bag sewing machines sew thick and thin materials, important parameters include not only sewing speed, but also sewing thickness, presser foot lifting height, turning capacity, etc. A container bag sewing machine is usually a large machine, which requires good fatigue resistance and sewing stability due to the limitation of the sewing thickness of the machine. In addition, most container bag sewing machines are differential feed or synchronous feed, which features greatly improved sewing life of the sewing machine.
The container bag sewing machine is very safe and can avoid personnel injury. It uses an intelligent control system that can automatically detect a wide range of faults and can sound an alarm in time when a fault occurs. In addition, it can also automate troubleshooting, significantly reducing maintenance time. The container bag sewing machine not only improves production efficiency, but also simplifies the processing process and reduces labor costs. It is widely used in food packaging, daily necessities packaging, household appliances and geotechnical fabric sewing. The container bag sewing machine is a kind of machine that requires high reliability and efficiency, which can help companies to improve production efficiency and open up more space for development. It is inevitable that any high performance sewing machine equipment will have major or minor failures during the long term use. It is important that we know how to analyze and solve them.
The bobbin bed cover is often out of position during the use of the bag sewing machine. This is usually because the machine needle rises 2.5 mm and the thread loop is formed when the left side of the bobbin bed cover gap acts as a push block for the thread loop. A small part of the thread section on the left side of the needle nose is pushed to the right side of the needle nose to make the thread loop a little larger for the pendulum shuttle tip to hook into the thread loop.
Therefore, the distance between the needle and the left side of the bobbin bed cover gap is 1 mm larger than appropriate. If this distance is greater than 1.5 mm, it does not play the role of pushing back the thread loop, so that part of the thread section of the loop moves left from the needle nose. Thus, the thread ring becomes smaller, easy to jump needle, broken thread and other failures. If this distance is less than 0.8 mm, it is easy to rub off and line. During the inspection, remove the needle plate of the bag sewing machine and the cloth feeding teeth, make the machine needle drop, and carefully check the distance between the machine needle and the bobbin bed cover. If the distance is greater than 1 mm, loosen the bobbin cover screw, move the bobbin cover to the right and tighten the bobbin cover screw again. If the distance is still greater than 1 mm after moving, should remove the shuttle bed cover, the shuttle bed cover both ends of the left side of the screw hole, with a small round file to file away a little, until it meets the requirements. If the distance is less than 0.8 mm, the opposite method can be used to deal with.
Cautions for using the container bag sewing machine
1. Before using the large container bag sewing machine, the safety devices of the machine must be checked to ensure that they are intact.
2. The power supply and power cord of the container bag sewing machine should meet the safety standards to prevent electric shock accidents.
3. Before using the container bag sewing machine, the machine parts should be inspected for damage and the damaged parts should be replaced.
4. Before operating the container bag sewing machine, check that the control and operating buttons on the machine are normal and ensure correct operation.
5. When operating the container bag sewing machine, ensure that the working environment is clean and that the operator wears safety equipment.
6. The container bag sewing machine should work under the specified load and avoid overloading.
7. The container bag sewing machine should be regularly maintained to ensure the normal operation of the machine.
8. The container bag sewing machine should be operated in such a way that the operator's fingers do not come into contact with the moving parts of the machine.
9. When operating the container bag sewing machine, avoid crossing the moving parts of the machine to avoid danger.
10. When the container bag sewing machine is operated, it should ensure that the machine is in working condition and should not be put in idle condition.
Routine maintenance of container bag sewing machine
Routine maintenance of the container bag sewing machine should include cleaning, inspection, adjustment and lubrication:
1. Cleaning: cleaning the sewing head and sewing machine of the container bag sewing machine, removing fiber debris from the machine, cleaning the internal and external surfaces of the machine, as well as the pulleys, sliders, sliding surfaces and other parts of the machine.
2. Inspection: Checking the machine for damage to the various parts, as well as the sewing thread head for backlog, the sewing thread device for looseness, the sewing thread for broken thread, the thread head for damage, the thread clip for damage, the thread clip for looseness, the pulley for wear, the slider for damage, the sliding surface for wear, etc.
3. Adjustment: adjust the speed of the machine, the length of the sewing thread, the squeezing strength of the pulley, etc. according to the use of the machine.

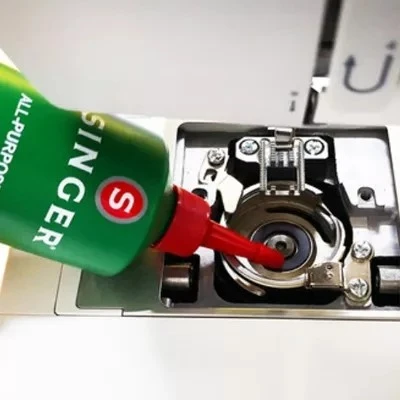

4. Lubrication: Every once in a while, the pulleys, sliders and sliding surfaces of the container bag sewing machine should be lubricated to prevent friction damage.
With the booming development of the world logistics and transportation industry, the demand for outer packaging bag products such as container bags and packaging bags has gradually increased, and in order to meet the demand for their use, container bag sewing machines have emerged in industrial sewing. Our Deko team is fully committed to researching and developing a special line KINGMAX Big bag sewing machine. If you are interested in our container bag sewing machine line, please don't hesitate to contact us!
