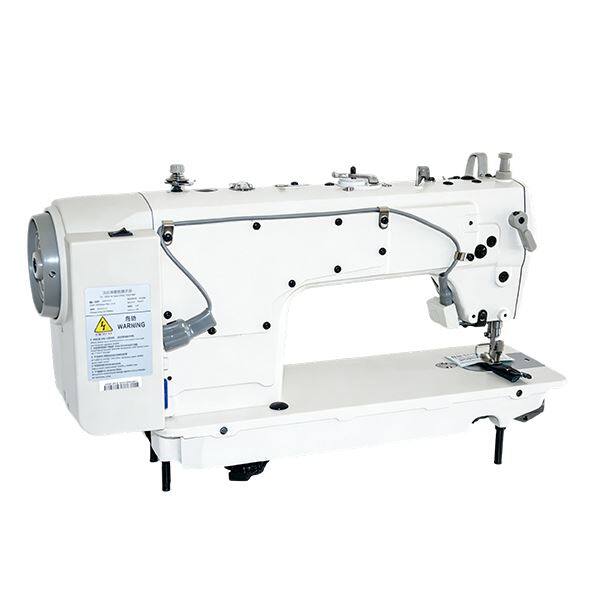

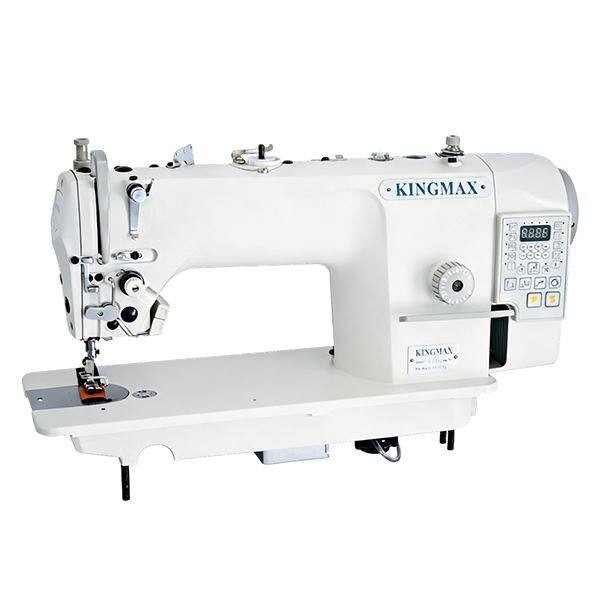

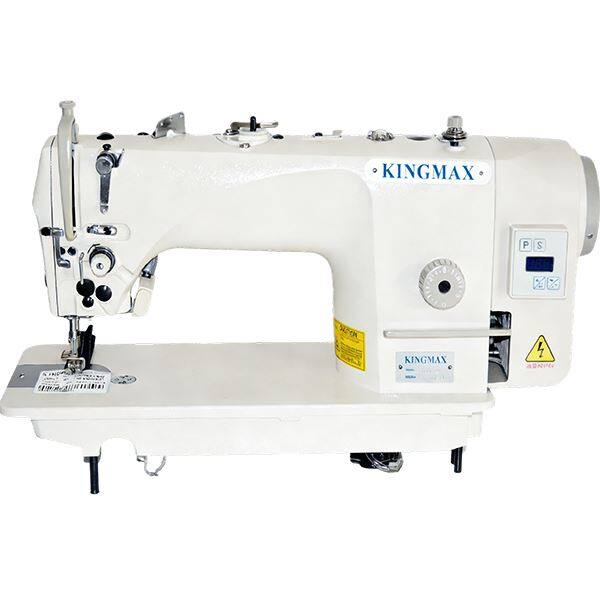

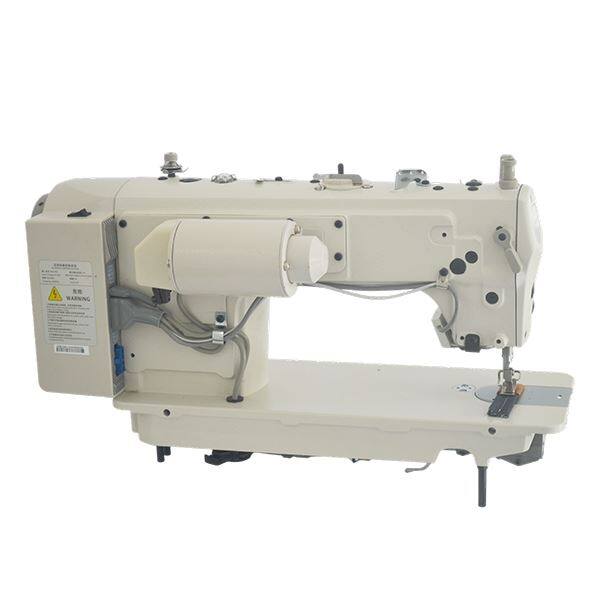

Name: China Cheap 5410 Direct Drive Needle Feed Sewing Machine Manufacturers Suppliers Factory - KINGMAX
Brand: KINGMAX
SKU: 289743514

Description

Technical Parameters

Products Features

1-needle, high speed, needle feed, industrial sewing machines
Both the standard and large hook as the option.
Long stitch length and high foot lift.
Mini strong direct-driven energy saving servo motor.
Very popular good needle feed sewing machines for the knitting fabric garments factory.

Products Descriptions & Details

These series machines are the high speed, single needle, direct drive, needle feed, flat bed, industrial lockstitch sewing machines. Both GC5410 and GC5410-7 are the direct drive needle feed sewing machine with the standard rotary hook, GC5410H and GC5410H-7 are the direct drive large hook sewing machine. All of them have the horizontal axis rotary hook, mini strong direct-driven servo motor, top built-in bobbin winder, the reverse lever mechanism, the fashion easy ready panel for the quick and simple operation, the needle feed and bottom feed dog feed mechanism make sure the stably quality sewing on the slippery and puckery materials without problem, low noise and ease maintenance. Suitable for sewing light to medium weight materials, such as clothes, lady wears, underwear, etc. Especially designed for sewing clothes made of knitting fabrics.

Sewing Detail

Rotary Hook, Bobbin&Bobbin Case

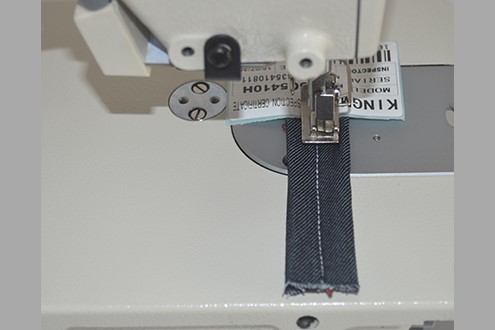

Sewn Sample

Products Specifications

Model	GC5410	GC5410-7	GC5410H	GC5410H-7
Number of needle	1 needle
Max.sewing speed	5000SPM		4000SPM
Max.stitch length	4mm		4.5mm
Max.Lift of the presser foot	13mm
Automatic thread trimmer	None	Yes	None	Yes
Hook	Standard rotary hook		Large rotary hook
Needle(standard)	DBx1
