In mattress manufacturing, edge stitching is a core process that directly determines the product's appearance precision, structural stability, and lifespan. It is also a common industry challenge for mattress manufacturers worldwide. Whether it's a large-scale mattress production base or a small or medium-sized processing enterprise, any company involved in mattress assembly will face technical bottlenecks related to edge stitching. Selecting highly adaptable specialized equipment is key to overcoming this production bottleneck-300U Sewing Machine Head For Tape Edge Machine, specifically designed for the mattress and bedding industry, precisely matches the operational requirements of mattress edge stitching, becoming a core piece of equipment in mattress production lines for improving efficiency and quality.
What you need to know about mattress edge sewing?
- Multi-layered composite materials: Insufficient penetration power of ordinary sewing machine heads
The mattress edge employs a multi-layered composite structure design, typically composed of fabric, foam, edge banding, and a base fabric. This results in a large overall thickness and high density, placing stringent demands on the penetration power and feeding stability of sewing equipment. Ordinary industrial sewing machine heads, due to insufficient needle bar travel and limited presser foot pressure adjustment range, are prone to problems such as broken needles, skipped stitches, and loose threads during sewing. They may even fail to penetrate the multi-layered composite fabric, not only delaying production but also causing the edge banding structure to loosen, reducing the mattress's lifespan.
- Curved edges and continuous stitching make it difficult to guarantee stitch consistency.
The mattress edge has an integrated curved structure, including four rounded corners and turns. During sewing, continuous work along the curved path is required, and uneven tension on the fabric is prone to occur. Ordinary sewing machines, due to insufficient stitch control precision, are prone to problems such as uneven stitch tension, edge band misalignment, and fabric wrinkling, affecting the product's appearance and lowering its quality. Furthermore, the mattress edge needs to be sewn continuously for extended periods; interruptions can easily lead to seam defects, increasing product waste and production costs.
- Flexible fabric + high-elasticity sponge: prone to displacement and uneven feeding
Mattress fabrics are mostly made of flexible materials, combined with high-elasticity sponge. During the sewing process, problems such as sponge rebound and fabric slippage can easily occur, leading to displacement and uneven feeding. This can cause the edge tracking to deviate, making it impossible to guarantee the consistency of mass production and directly affecting the product qualification rate.
Why choose 300U as an assistant for mattress edge sewing?

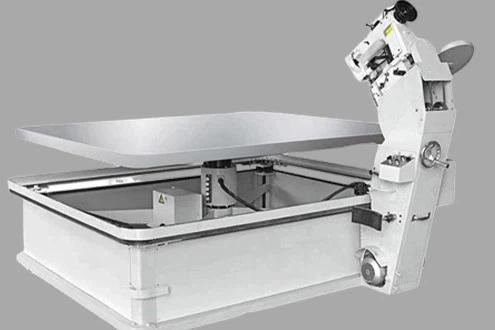

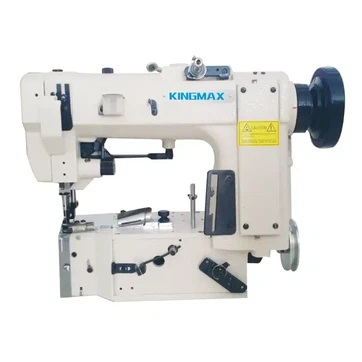

- Dedicated Tape Edge Machine Head Design
The 300U is a dedicated machine head developed specifically for tape edge machines, meeting the composite sewing needs between mattress upper and lower fabrics and tape binding, especially suitable for edge binding of spring mattresses, foam mattresses, and upholstered mattresses.
- Consistent Stitch Formation Control
Utilizing a linkage-type thread take-up and rotary hook structure, it ensures stable double-thread lockstitch (Lockstitch 301) stitches when sewing multiple layers of materials (such as fabric, tape binding, non-woven fabric, and adhesive cotton), avoiding skipped stitches and loose threads, and meeting the tensile strength and anti-unraveling requirements of mattress edges.
- High Throughput and Thickness Adaptability
For common height differences in mattress edge sewing (such as transitions from thin to thick layers at corners), the 300U features a larger presser foot lift and feed tooth stroke, allowing for stable sewing of edges containing composite structures such as foam, coconut fiber, and hot melt adhesive film without damaging the fabric or tape binding surface.
- High-speed continuous operation capability
Supports high-speed continuous operation (typically 3000–3500 RPM). Combined with the differential feeding system of the edge banding machine, it can handle the curved corner sewing of round or rectangular mattresses, reducing downtime for adjustments and increasing single-shift output.

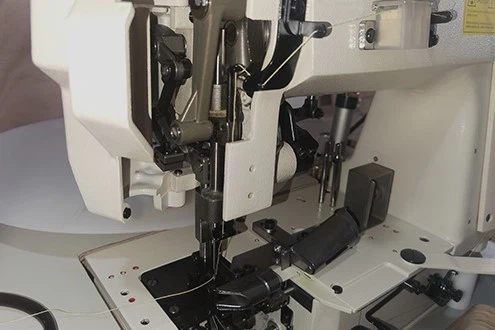

- Optional platform-style standalone application
In addition to integration with the edge banding machine, a flat-bed version is also available, suitable for edge banding processes in prototyping, small-batch production, or special-structure mattresses (such as thin mattresses or folding mattresses), improving equipment flexibility.
If you need more information or quotation for the High Speed Chainstitch Sewing Machine 300U for Tape Edge Machine, please don't hesitate to contact us.
